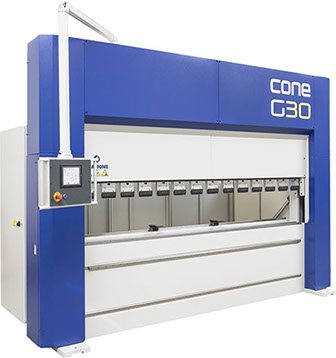

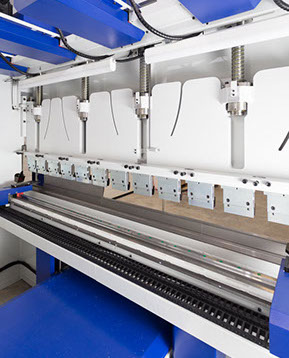

The G30 features an O-frame just like all the G-Series press brakes. It deflects less than a conventional C-frame while still remaining lighter. The G30 has five servo driven ball screws which crown and bend simultaneously. Due to the servos’ high accuracy, the upper beam can be CNC deflected to “follow” the lower beam seamlessly. This is the unique system that gives you a great bending result. This is CoastOne’s unique direct crowning.
In addition to servo technology’s superior kinematic, it also saves the environment. The lack of hydraulic oil also eliminates expensive oil changes, spare parts, valves and maintenance expenses common to hydraulic press brakes.
Options
Wila (US style) tooling
Promecam (European style) tooling
Lazersafe safety device
Cnc-controlled sheet followers (2 pcs)
Z1-Z2 axis
Cone TC15 control with 15” screen
